Specification:
| Brand | Uniview |
| Model | UAC-T122-AF28LM |

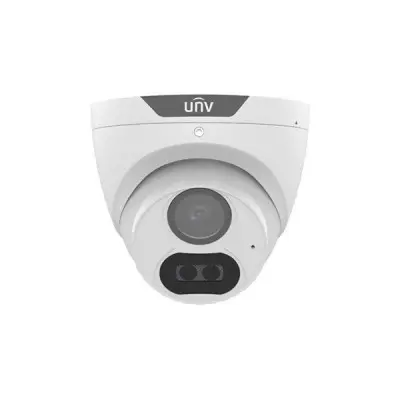

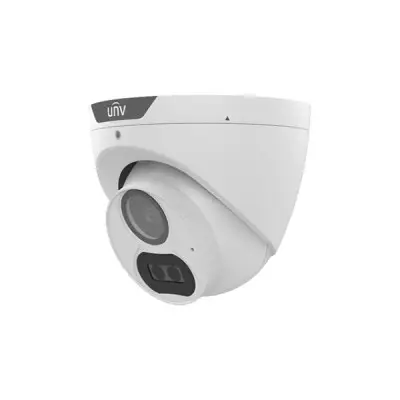

| Type | 2MP LightHunter HD IR Fixed Turret Analog Camera |
| Pixel | 2MP |
| Size | 1/2.9" |
| Minimum illumination | 0.005 lux (F1.6, AGC ON) 0 lux (IR on) |
| Lens | 2.8mm |
| Lens mount | M12 |
| Angle of view | H: 101.5° V: 56.9° D: 117.4° |
| Illuminator | Two IR illuminators |
| Illumination distance | 40m |
| Lifetime | ≥60,000 hours |
| Resolution | 1080P: 1920(H)×1080(V) 720P: 1280(H) ×720(V) |
| Frame rate | TVI/AHD/CVI: 1080P@25fps (default), 1080P@30fps; 720P@25fps, 720P@30fps CVBS: PAL, NTSC |
| Shutter Time | PAL: 1/25s-1/50000s NTSC: 1/30s–1/50000s |
| Exposure Mode | Four modes: Global (default), BLC, HLC, DWDR |
| Day/Night | Three modes: Auto (default), Day, Night |
| Digital Noise Reduction | 2D/3D |
| White Balance | Two modes: Auto (default), Manual |
| WDR | DWDR |
| Smart IR | Support |
| Flip | Supports 180° horizontal flip, 180° vertical flip |
| Defog | Digital Defog |
| Microphone | Built-in Mic |
| Camera Audio | TVI: 1080P@25fps, 1080P@30fps CVI: 1080P@25fps, 1080P@30fps |
| Power | 5.5mm power interface |
| Video Output | BNC, supports TVI/AHD/CVI/CVBS |
| Power | DC 12V (±25%), with reverse polarity protection, Max 3.2W |
| Temperature | -30°C to 60°C (-22°F to 140°F) |
| Humidity | ≤95% (RH, non-condensing) |
| Surge Protection | 4kV |
| Ingress Protection | IP67 |
| Dimensions | Φ111mm*98mm (diameter*height) |
| Weight | 334g (0.74lb) |
| Body Material | Metal+Plastic |
| Mount | Surface mount (default), optional backbox, wall mount bracket |
| Certification | CE, FCC, UL |
| Warranty Details | 1-Year Brand Warranty |
